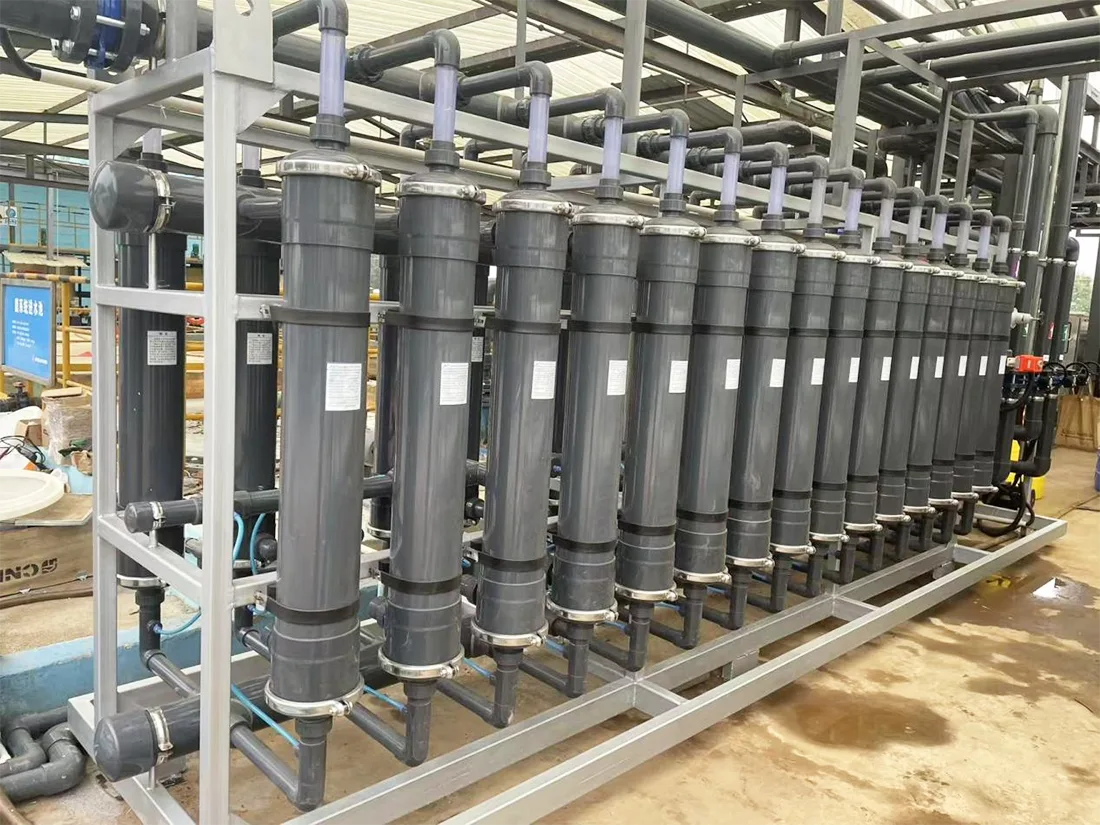

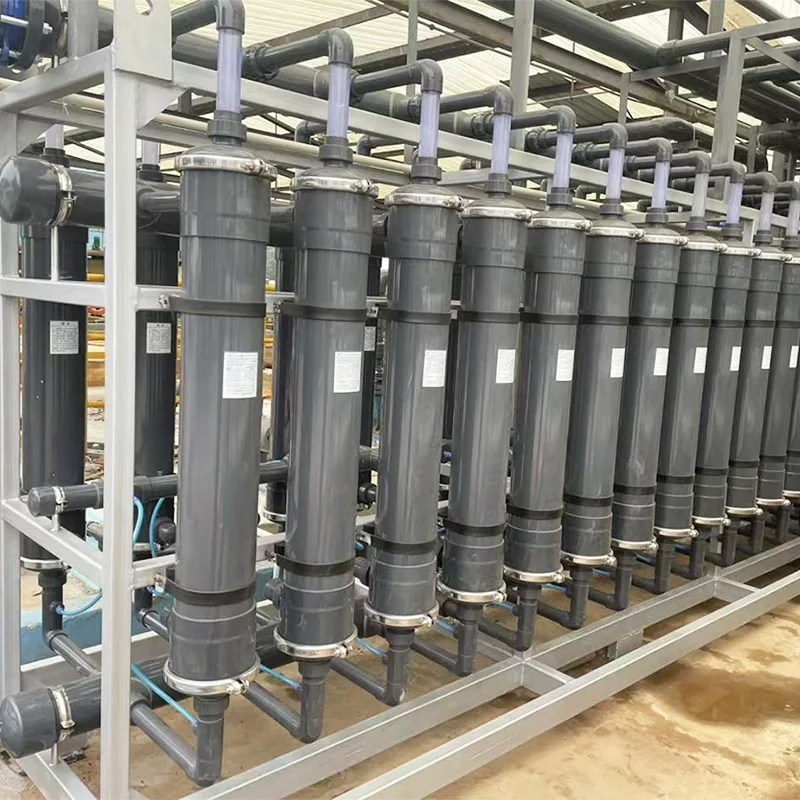

The working principle of Jingbo's Ultrafiltration Equipment for Chemical Industry is quite simple: it acts like a super-fine sieve, using pressure to push the feed liquid through the membrane. The pores on the membrane are only 0.001 to 0.1 microns, effectively blocking large molecules, colloids, and bacteria, while allowing water and small molecules to pass through smoothly, resulting in extremely high separation precision.
Furthermore, it features a modular design; adding more membrane modules increases processing capacity, while reducing the number allows for greater flexibility. The equipment uses durable PVDF material, enabling 24/7 operation and withstanding the demands of chemical cleaning.
|
Recovery Rate |
Operating Pressure |
Turbidity (NTU) |
Material |
|
≥90% |
≤0.3MPa |
＜0.1 |
PVDF |
Ultrafiltration Equipment for Chemical Industry is easy to operate, controlled by a touchscreen. Key data such as transmembrane pressure and turbidity can be viewed in real time, and it can also automatically clean itself, requiring minimal manual labor. Its recovery rate can reach over 90%, and the operating pressure is only 0.3 MPa, saving significantly more electricity than traditional heating concentration methods, resulting in substantial long-term cost savings.
In chemical production, Ultrafiltration Equipment for Chemical Industry has a wide range of applications: separating and concentrating resins and latexes, removing salts from dyes to improve purity, serving as pretreatment for reverse osmosis systems to protect downstream equipment, and treating chemical wastewater for recycling. With it, product quality can be improved, water resources can be saved, and environmental pressure can be reduced, making it exceptionally cost-effective for businesses.
