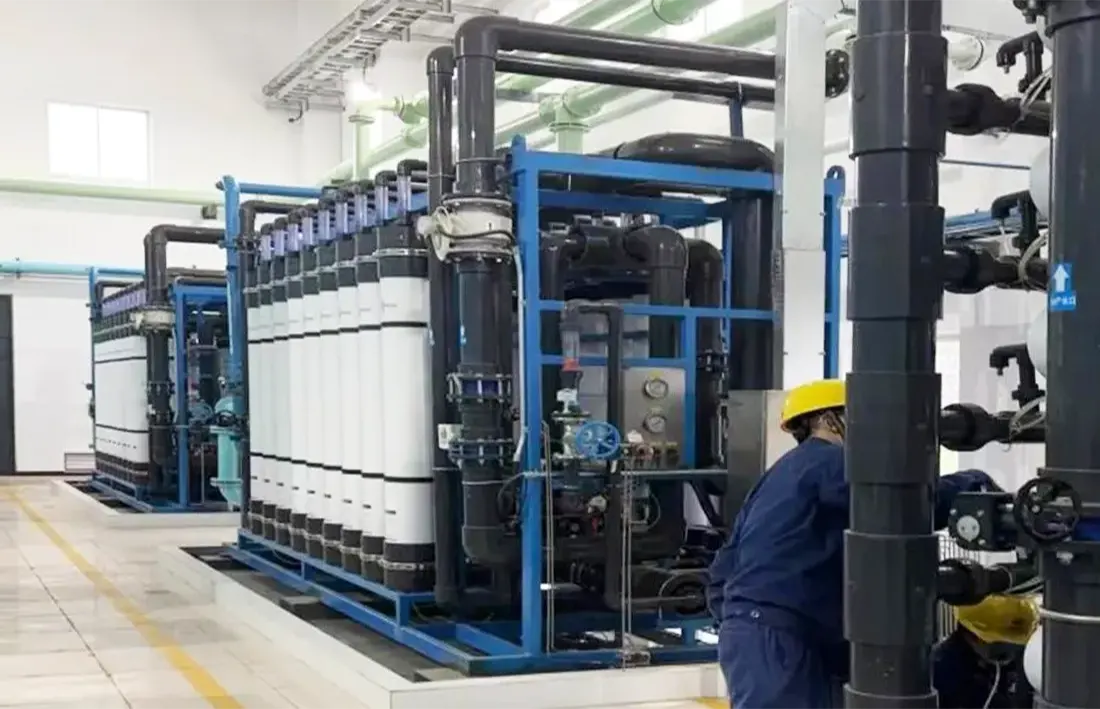

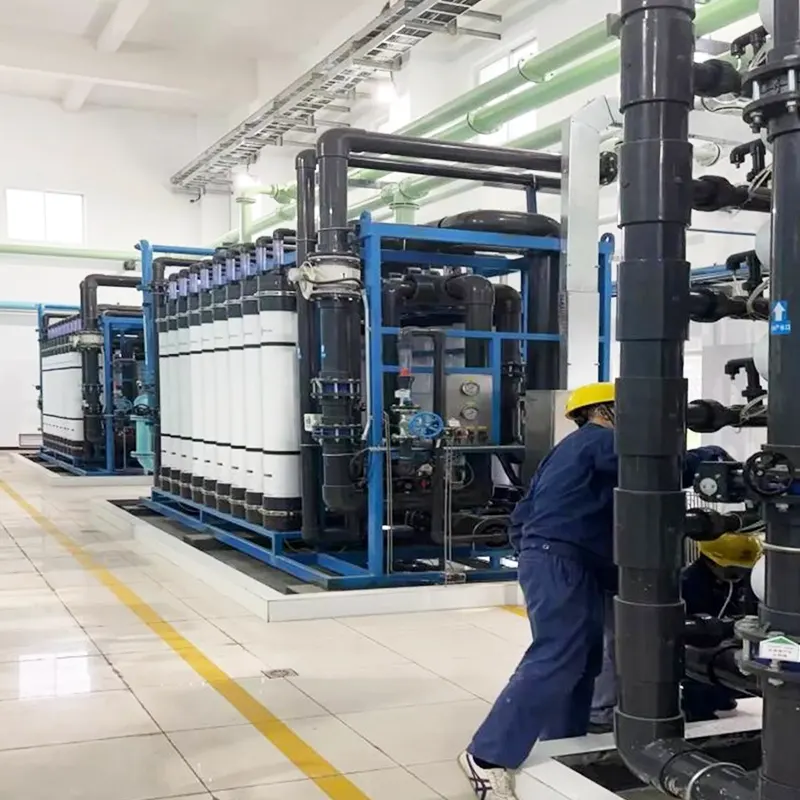

Ultrafiltration Equipment For Power Plants

The core of Jingbo's Ultrafiltration Equipment for Power Plants is pressure-driven, using a special PVDF membrane as a "sieve." The pores on the membrane are only 0.001 to 0.1 microns in size, effectively trapping suspended solids, colloidal silica, bacteria, and other impurities. The filtered water has a turbidity of less than 0.1 NTU, resulting in exceptionally clean water. It employs a cross-flow filtration method, where high-speed water flow across the membrane surface washes away trapped impurities, preventing membrane clogging.

Product Parameters

In power plants, this Ultrafiltration Equipment for Power Plants has many uses: it pre-treats boiler feedwater before use, ensuring the quality of downstream RO and EDI systems and preventing equipment malfunctions; the large amount of wastewater discharged from circulating cooling systems can be treated in conjunction with reverse osmosis and reused as cooling water or boiler feedwater, saving a significant amount of fresh water; in wastewater "zero discharge" systems, it also protects downstream critical equipment.

Ultrafiltration Equipment for Power Plants is easy to operate, with a dedicated touchscreen control system that displays parameters such as pressure and flow rate in real time. It also features automatic cleaning and can operate continuously for 24 hours without problems. Its recovery rate can reach over 90%, and its main power consumption comes from the circulation pump, which is significantly more energy-efficient than heating and concentration, making it both cost-effective and environmentally friendly in the long run.
